N J O R D

Njord Profile

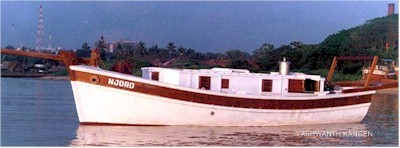

Njord is a 36' wooden motor-sailer which we have built for Mr C. Orsini, a consultant naval architect of Menton, France. This boat is based on one of our standard hulls laid-out and rigged as per Mr Orsini's design. The boat is a strongly built displacement type hull of mainly wild jack wood (artocarpus hirsuta), carvel planked on sawn frames in our customary style using copper, brass and SS fastenings.   Mr Orisini's boat is installed with an Indian-made Simpsons (Perkins) Diesel of 28 hp which drives her at a comfortable 7-8 knots.

 Motorsailer Njord

Basic Specifications

LOA (Hull) 37'  /  11.2 mt
Beam 10'-6"  /   3.2mt
Hull Depth (midship) 6'-6"  /   2mt
Displacement 11 m.tons

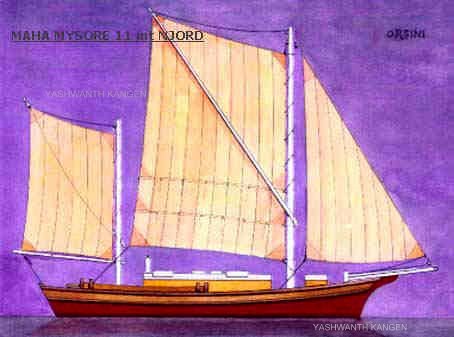

Sail Area 860 sq.ft (total)

If you find this class of boat interesting you could discuss your design requirements directly with Mr Orsini who has designed several other sailboats including the 14 mt motor-sailers built by us. His address is: 67, Route de Sospel, 06500 Menton, France. Ph: 33-493357916                 Fax: 33-493573278.

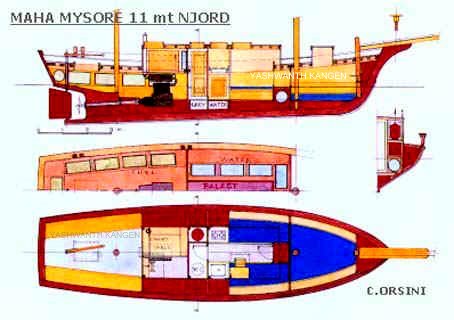

Njord layout
