41' TRAWLER

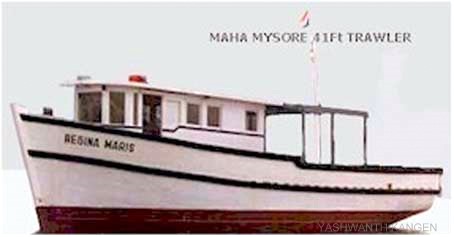

41' Trawler

The Mahasagar 41 Stern Trawler of 15-day voyage endurance is the outcome of innovative engineering combined with decades of experience with boats.  Provided with a fuel capacity of 5 KL, freshwater capacity of 3 KL, fishhold volume of 10 Cu.Mt and powered by a marine diesel of only 100 bhp, this boat efficiently and at lower cost performs tasks usually performed by much larger boats.   Built to a high standard of construction, this strong, low-maintenance fibreglass-lined hull has excellent sea-keeping qualities under all working conditions.

Length OA 41-00" / 12.50 mt
Beam 13-8" / 4.20 mt
Draft 6-6" / 2.0 mt
Propulsion 100-120 bhp (or owner's decision) Marine Diesel
Construction Carvel-planked wooden hull of mainly wild-jack wood (artocarpus hirsuta) with copper, brass and stainless steel fastenings throughout.
Speed Free Running 7-9 knots
Fuel Oil Tanks Upto 5 KL, FRP
Fresh Water Tanks Upto 3 KL, FRP
Fish Hold 10 Cu.M Volume, Rigid Foam Insulated and FRP lined
Catch Preservation Ice / Refrigeration
Endurance 15 days
Crew Complement 6
Hull Bottom Protection FRP lining / Copper or Aluminium Sheathing
Winch Twin Drum Mechanical Drive

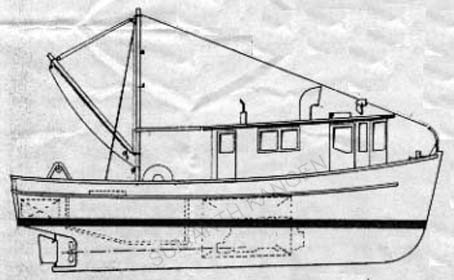

41' Trawler Drawing
